SPECIFICATIONS
Brand Name: Erilles
Output Interface: Double USB
Output Interface: DC
Output Interface: USB-Type C
Input Interface: USB Type C
Battery Type: Lithium Polymer Battery
Shell Material: Metal
Features: Digital display
Origin: Mainland China
Type: Outdoor High Capacity Power Supply
Certification: pse
Certification: CE
Certification: EPA
Certification: GMP
Certification: TGA
Certification: KC
Certification: UL
Support Quick Charge Technology: Two-way Quick Charge
Max Input: 120W
Standard type: National standard
Load effect: 150W
Applicable scope: Various digital products for small household appliances
Battery type: Cylindrical lithium battery
Protection type: BMS
Power supply type: Emergency power supply
Battery specification: 21700
Product family: 220V/110V outdoor power supply
output voltage: 100-220V/DC 12-16.8V/USB 5V,220V/DC 12-16.8V/USB 5V
display mode: LCD display screen
Please note:
There are 110V and 220V in the product options,
Please pay attention to select the required interface
Outdoor mobile power supply, emergency energy storage battery

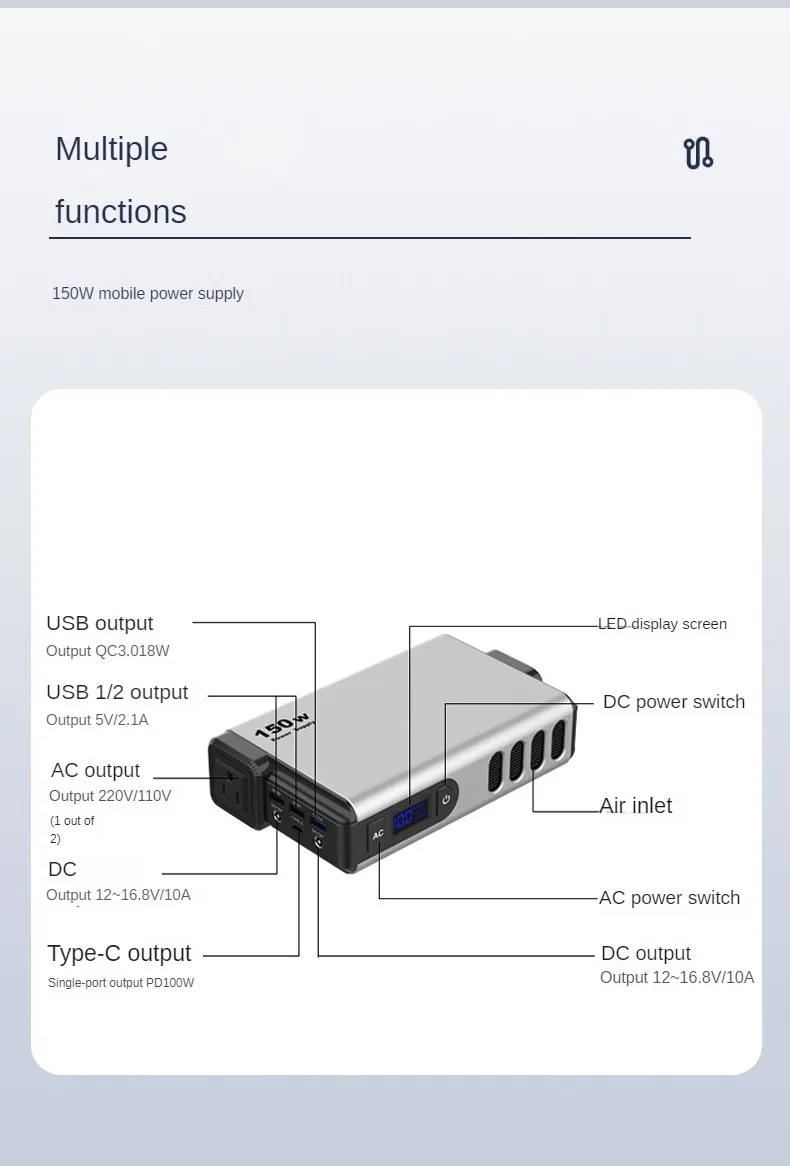

feature:
1. Correction wave output, no damage to equipment,
Fan cooling, emergency lighting
2. Multiple security protections
3. 220V/110V optional output
4. AC/DC/Type-C output
5. PD100W fast input

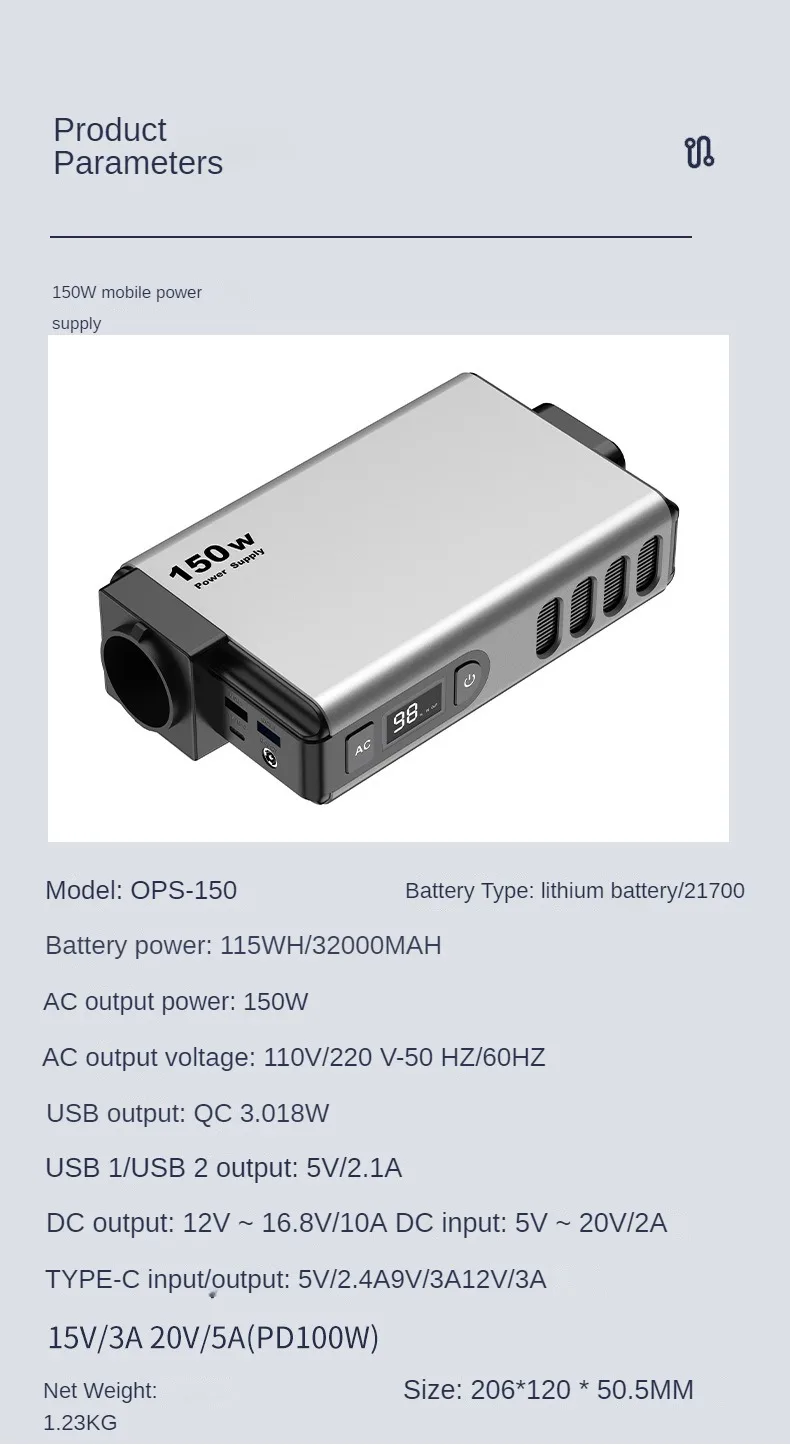

Battery Type: lithium battery/21700
Battery power: 115WH/32000MAH
AC output power: 150W
AC output voltage: 110V/220 V-50 HZ/60HZ
USB output: QC 3.0 18W
USB 1/USB 2 output: 5V/2.1A
DC output: 12V ~ 16.8V/10A DC input: 5V ~ 20V/2A
TYPE-C input/output: 5V/2.4A9V/3A12V/3A
15V/3A 20V/5A(PD100W)
Net Weight:1.23KG
Size: 206*120 * 50.5MM
NOTE:
Portable Battery charger case has two regular standard of capacity , one is the battery capacity, one is the rated capacity.
Why exist this difference?
The most important reason is the conversion rate. Because most of power bank’s battery voltage is 3.7V, and power bank needs to increase the voltage to 5V when charging the mobile phone, which making the power bank’s conversion efficiency only 3.75/5=74%, Also include generated heat when battery voltage boosting, and various of wire consumption, Electricity and self-consumption. these points add up to account for 30%-40% of the power of the mobile power source.
So the 5,000mAh power bank can really be used by us only about 3000-4000mAh.
Also, The conversion rate of the entire mobile power industry is basically in the range of 60%-70%. Please kindly noted.
Please search on Google if want to know the details!
