SPECIFICATIONS
Brand Name: suntekcam
Origin: Mainland China
Model Number: HC802A
SUNTEK basic camera features
❉1. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 24 pixels) or records HD video.
❉2. Fast Trigger Speed: With an impressive 0.5 second trigger speed (pre boot 0.3 Second), a zero second delay between triggers (stills only) and up to 10 photos Multi-Shot feature, you never miss any of the action.
❉3. Perfect Detection & Flash Range: Using a state of the art multiple zone detection sensor, the Trail Camera is equipped with a 120° detection angle and a 65 feet detection range, which matches the 120° field of view perfectly

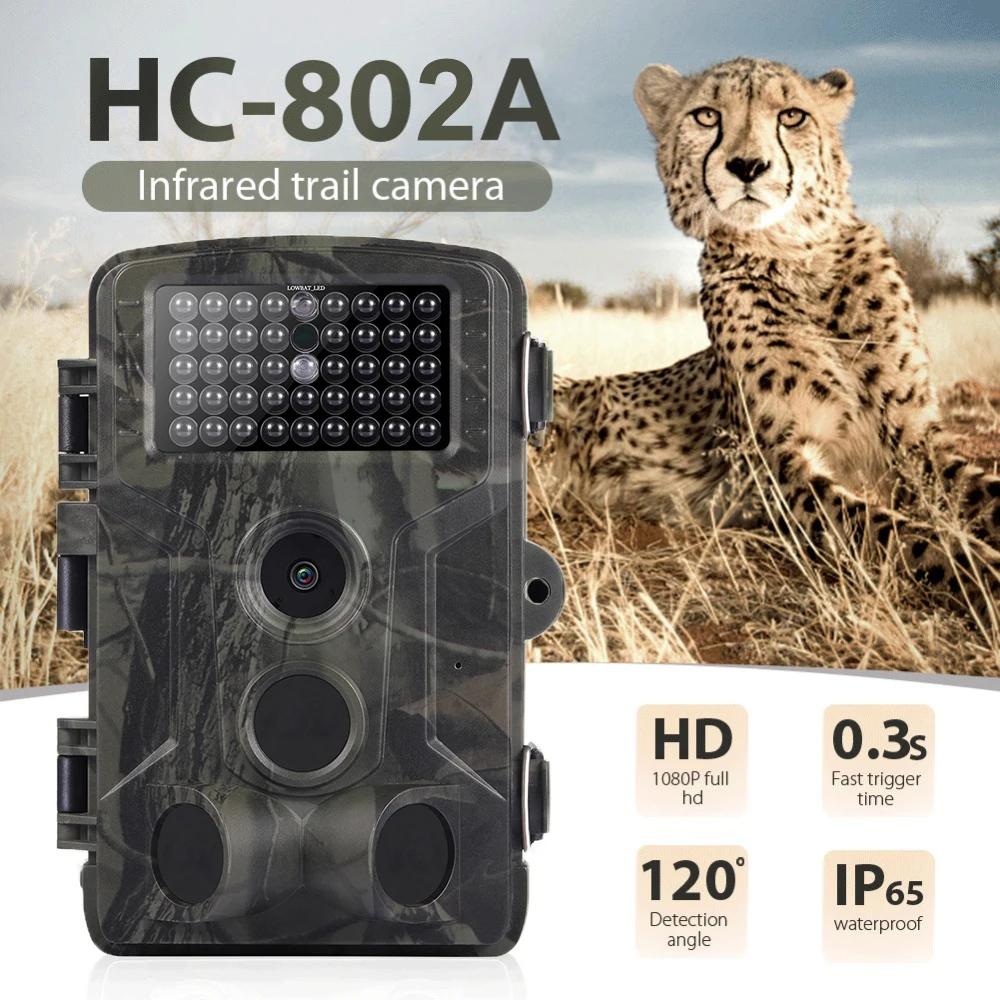

HC-802A Hunting Trail Camera Specification
Image Sensor | 5 Mega Pixels Color CMOS |
Memory | Micro SD Card to 32GB(not included) |
Lens | F=2.8; FOV=90 ° |
Size | 135mm * 90mm * 76 mm |
Display | 2.0 inch TFT |
Mode | Camera/Video/Camera&Video/Timelapse |
PIR Detect Range | 120 Degree |
Night Vision Distance | 65ft/20meters |
IR LED | 850nm Infared LEDs |
PIR Distance | 65ft/20 meters |
Trigger Speed | 0.3second |
PIR Interval | 5 seconds ~ 60 minutes (default 5 sec) |
Image Resolution | 24MP/20MP/16MP/12MP/8MP/5MP/3MP/1MP |
Multiple Photo on one detection | 1/3/9/10 |
Video Resolution | 1080P/720P/480P |
File Format | JPEG/AVI |
Date Time Imprint | Yes |
Moon Phase Imprint | Yes |
Password Security | 4 digital PIN code |
Stand-by current | 0.1mA |
Stand-by time | 6Months |
Interface | TV-out ; USB2.0 ; Micro SD Card ; 6V/1A External |
Fix Method | Belt, Tripod mount |
Motion Detection | Low/Medium/High |
Operation Temperature | -20 ~70℃(-4~158℉) |
Power | 4X or 8X AA batteries(not included) |
Timer | Yes |
Waterproof | IP65 |
Language | En/FR/DE/ES/RU/DK/NL/PL/PT/SE/IT/FI/JP |
Certificate | FCC,CE,RoHS |
Packing Accossories:
Hunting Camera*1
USB cable ×1
User manual ×1
Tree bandage ×1
Note:
– Please insert the Micro SD card when the camera is power off.
– Please do not insert or take out the Micro SD card when the camera is power on.
– Recommended formatting the Micro SD card by the camera when used at the first time.
– The camera will be in USB mode when connected to a USB port of a computer. In this case, the TF card function as a removable disk.
– Please ensure sufficient power when having firmware upgrade, otherwise the upgrade process could be interrupted incorrectly. If any fault occurs after improper upgrading process, the camera may stop function properly.
