SPECIFICATIONS

Brand Name: Vector Optics

Type: RIFLE

Origin: Mainland China

Function: Lens

Model Number: SCOC-25

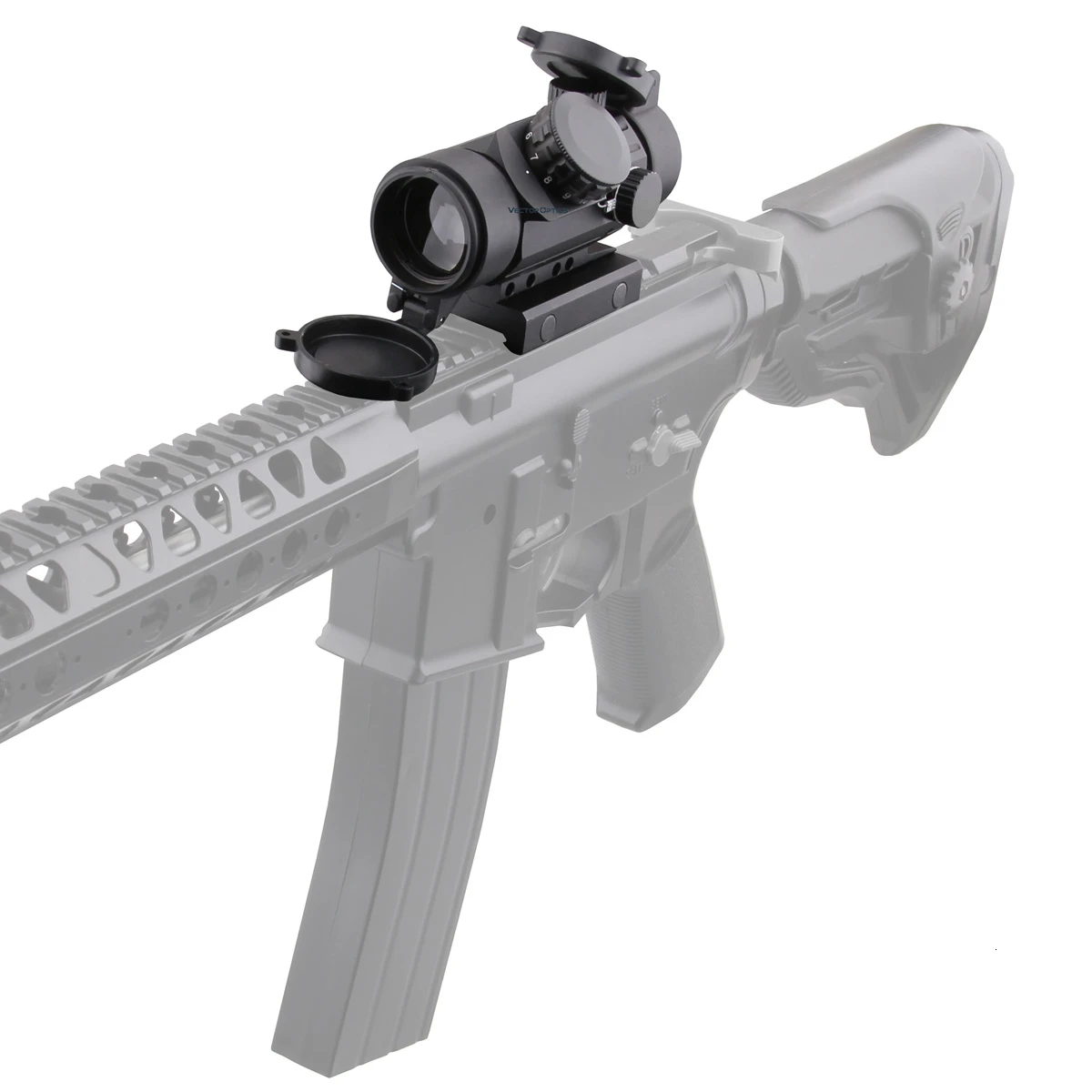

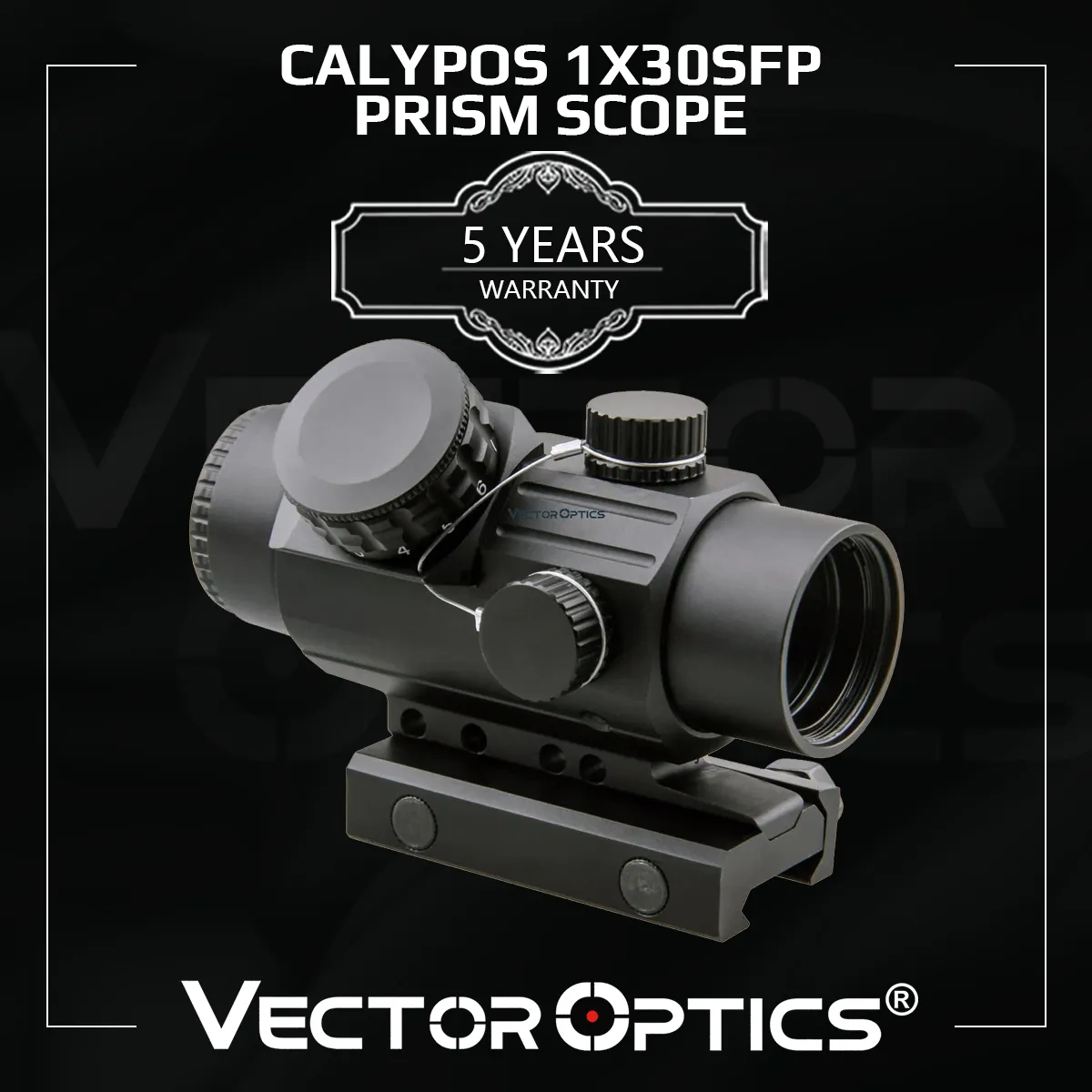

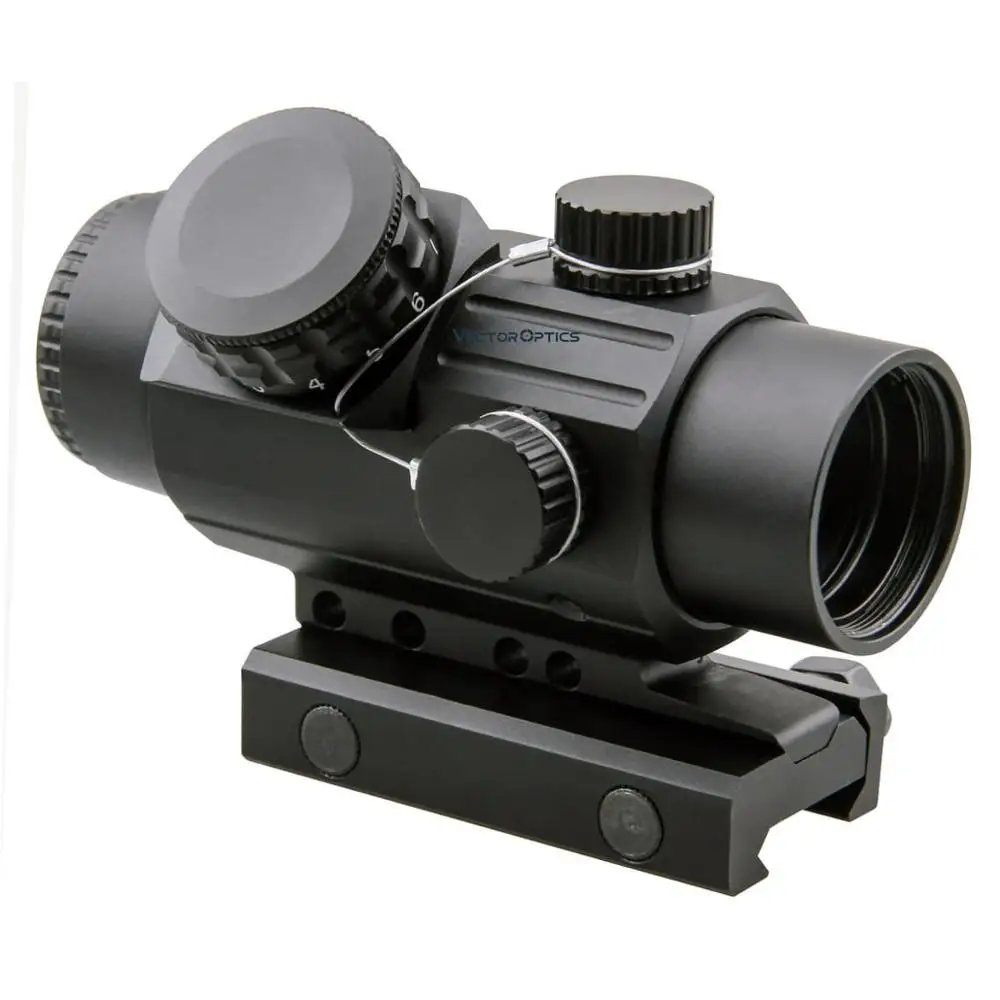

☆SCOC-25 Calypos 1×30 CQB Tactical AR15 Riflescope

Pictures

H92e2bd153277401084aebdc28eea9e6fP

Hbfc9600635584168aa1101a6cec68434W

Hc173732940f140cd8bf27ea685bb154cc

Hfc217182def940e59a41324ce839acc2g

Hc64f327cad844969b3f4d821ba362c0cg

H7ebcbb64a67e441ca5dc19dc71331e7b8

H7d94a010d4f5415097db4ff814c54864R

H701ddd6693af4ce4a3fa2b4c302eefda7

Hc1f553c1e0974bd2a49564e8fc896a0aJ

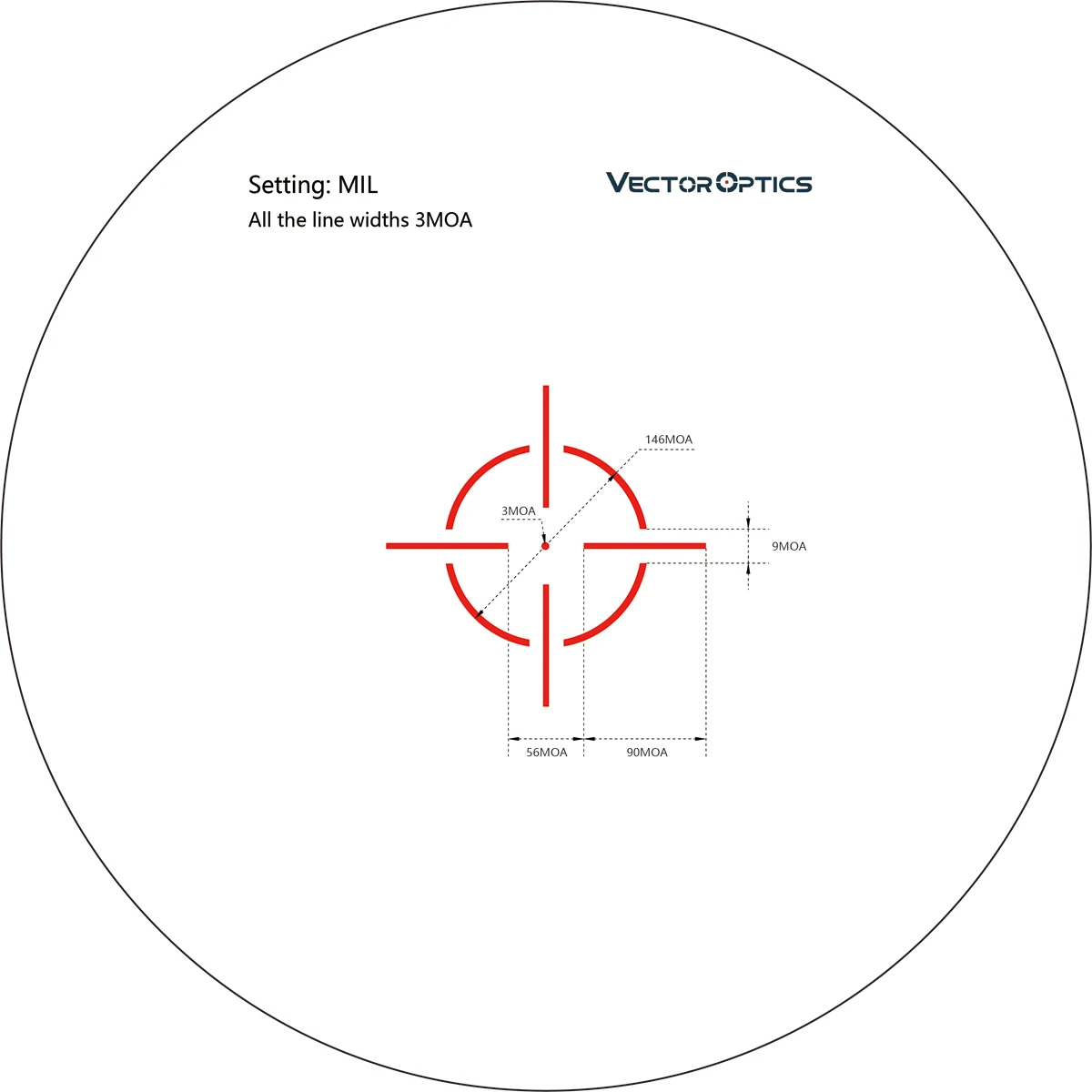

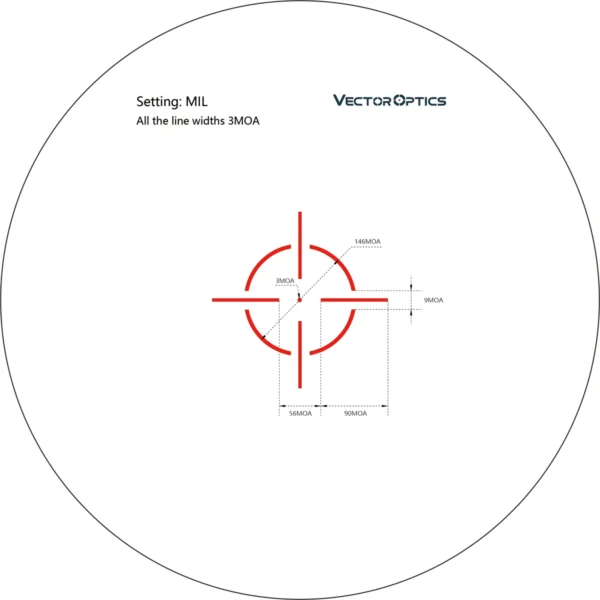

Reticle

He5cc97c129d0425e81b445873249465fd

Features

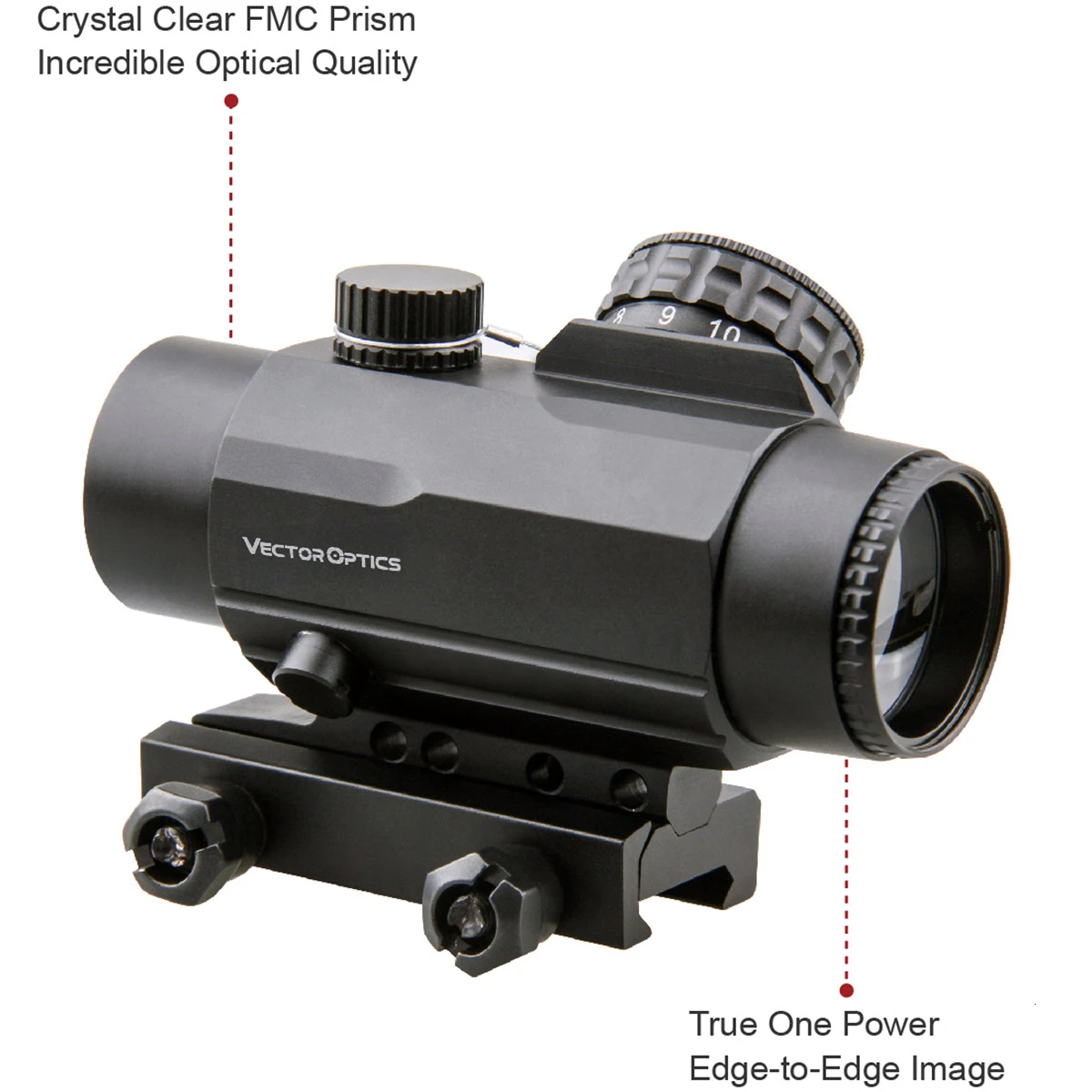

· Crystal Clear Prism Scope With FMC Prism Offers Distortion Free and Edge-to Edge Image,

· True One Power Two eyes Open Prism Scope w/ Incredible Optical Quality,

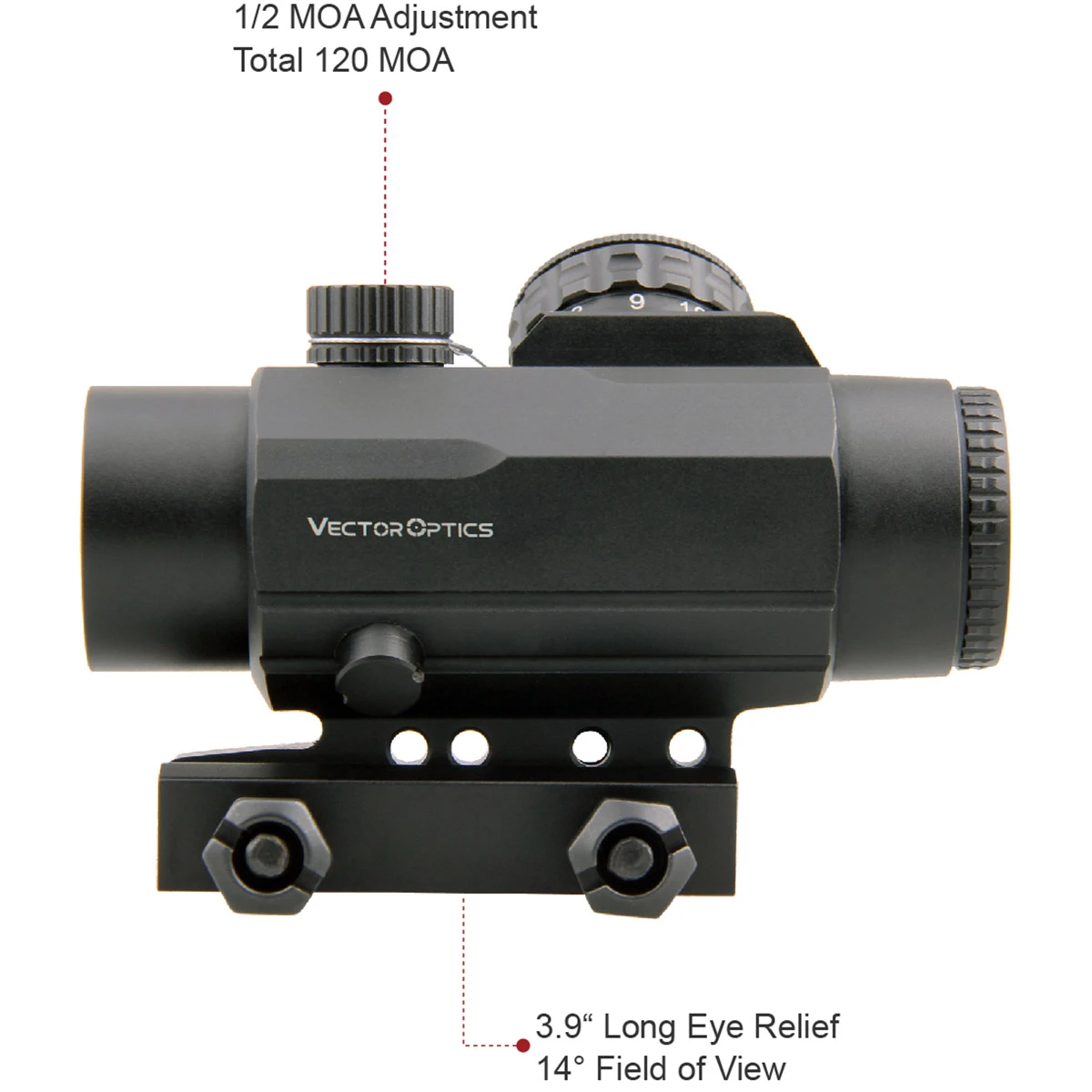

· 3.9“ Long Eye Relief, >14° F.O.V Wider Than Most Other Similar Sights,

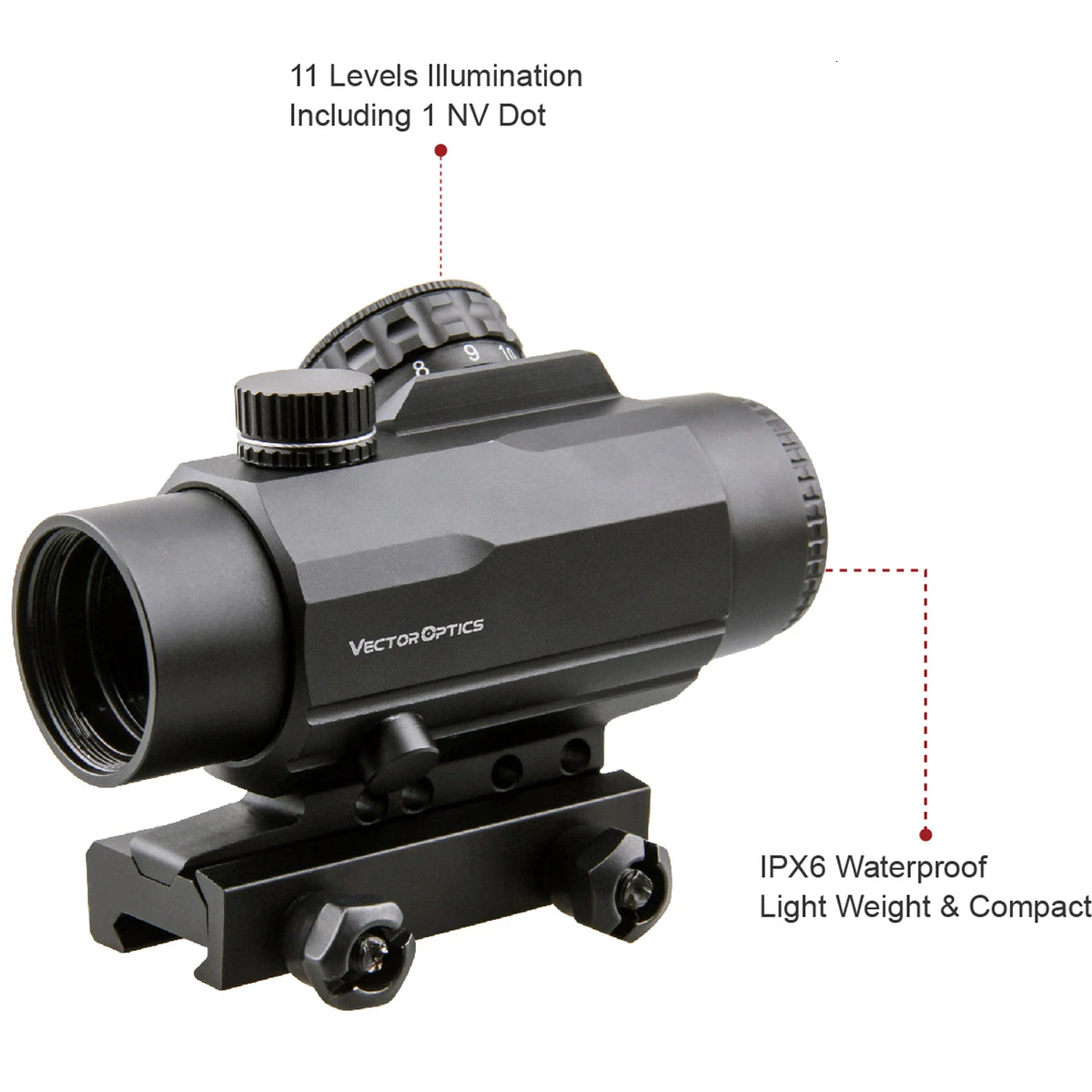

· 11 Levels Illumination Very Bright & Very Dim (Fit NV), 1/2 MOA Adjustment,

· Very Compact CQB Scope 103mm 4.1″ Length Featuring .223 5.56x45mm Cartridge

· The 3MOA Center Dot with Ring Illuminated Reticle Optimize the Ultra Fast Shooting Performance

· IPX6 Waterproof Built By Heavy Duty Rugged Aluminum Housing, Absolute Co-witness

Overview



	Click Value : 1/2 MOA Elevation Range : 120 MOA Windage Range : 120 MOA Turret Type : Capped




	Illumination : 11 Levels Red Parallax Setting: 100 Yards Field for View: 24.9m @ 100 meters Eye Relief: 98-94mm / 3.9-3.7 inch

Specifications

Magnification	1x
Objective Lens	30mm
Exit Pupil	16-14mm
Optical Coating	Fully multi coated
Field of View	>14°
Height	36mm (1.41″) from bottom to center
Length	103mm / 4.1 inch
Weight	335g / 11.8oz
Reticle	Etched VEP-ROD
Finish	Black matte
Battery Type	CR2032(Not included)

· Shock proof and fog proof (nitrogen filled)

· High quality aluminum alloy in durable black matte finish

· Fast focus eyepiece at ocular lens adjustment -2 to 2

· Integrated Mount for 21mm picatinny rail

Packing

Including items:

1x flip-up caps

1x plastic adjustment wrench

1x hex keys

1x cleaning cloth etc

H5ada705fd62e4f9885b0bd01b0fefb8fJ

Related Products

Ha699c8c3afd6423e81464d29cf496b11r

5 Years Limited Warranty

Your Vector Optics product is warranted free of defects in materials and workmanship for a period of 5 years from time of purchase by the original purchaser. Batteries are not covered under warranty.

In the event of a defect under this warranty, we will, at our option, repair or replace the product. This warranty does not cover damages caused by misuse or improper handling. Also, this warranty is null and void if modification or maintenance is provided by someone other than Vector Optics. This warranty is non-transferable.

For products not directly purchased from us, customer should contact their local dealer for applicable warranty in.
