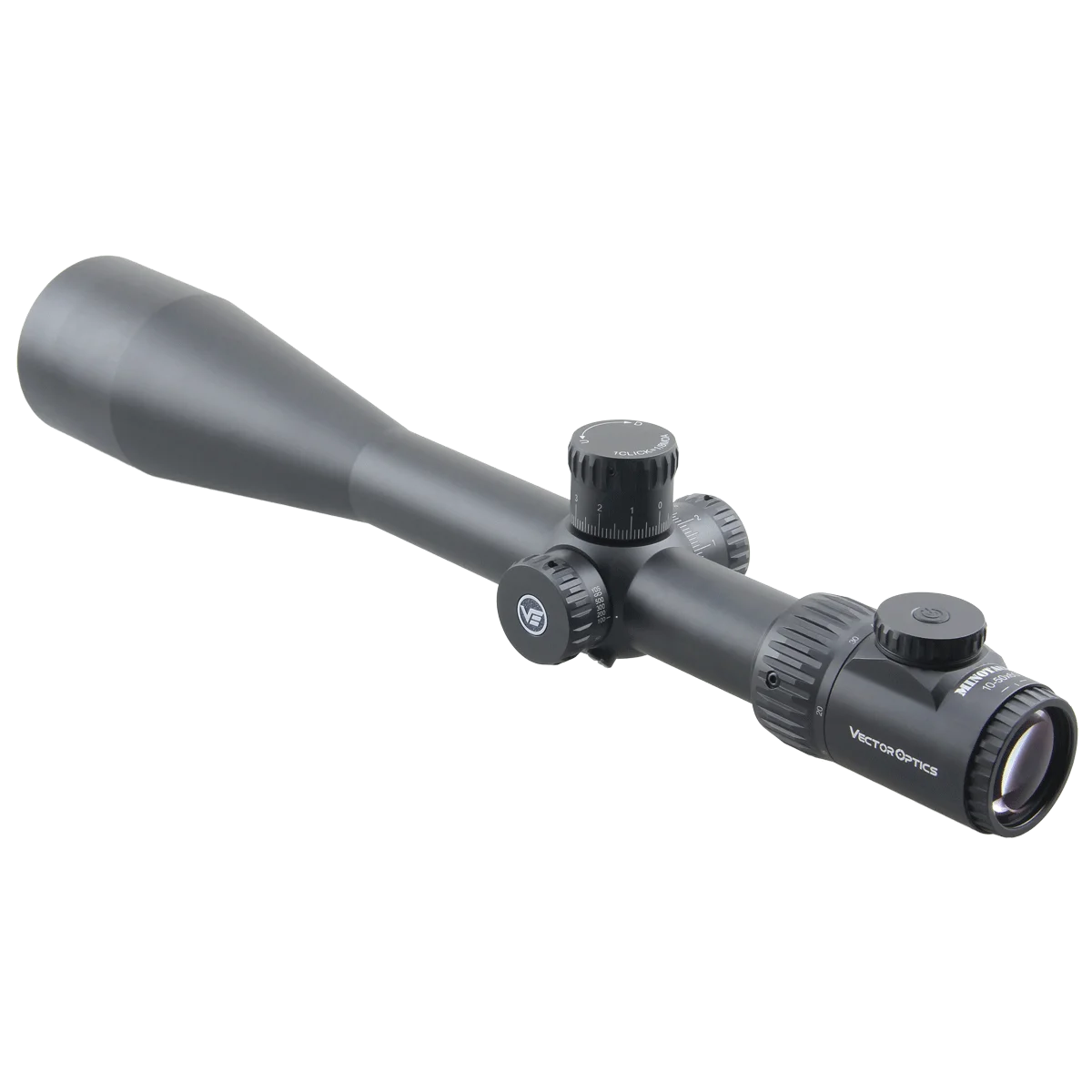

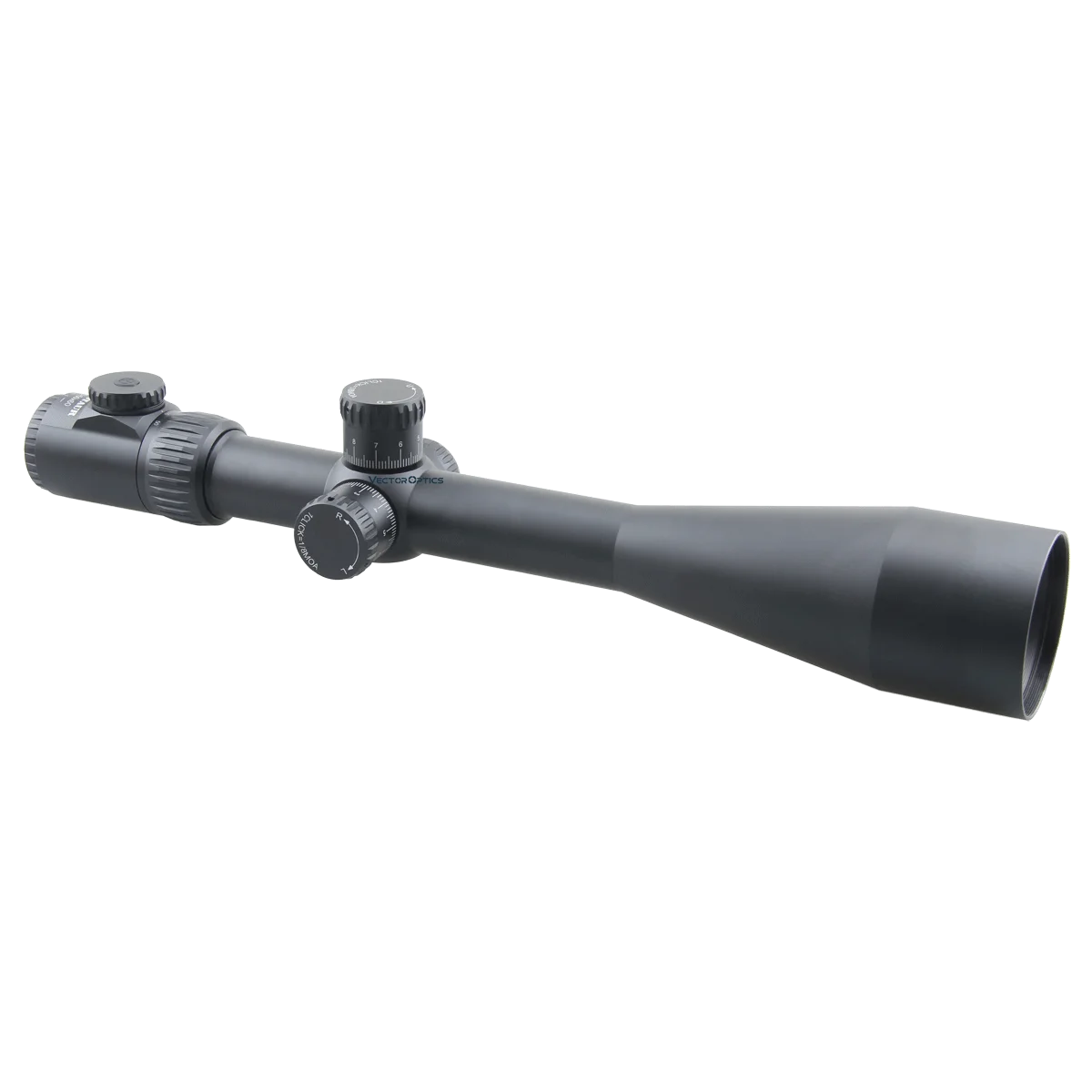

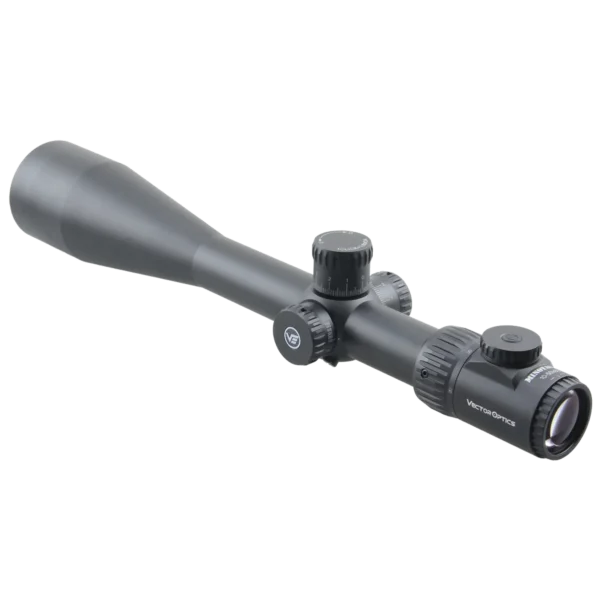

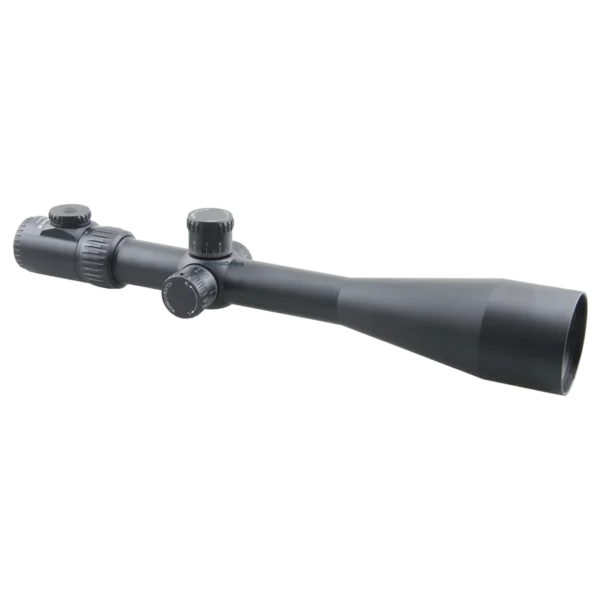

Vector Optics Minotaur 12-60×60 Hunting Rifle Scope

Availability: 11115 in stock

$ 581

SPECIFICATIONS


Brand Name: Vector Optics

Type: RIFLE

Origin: Mainland China

Function: Lens

Model Number: SCOL-37 SCOL-40




SCOL-37 & SCOL-40  Minotaur 12-60×60 GenII SFP Riflescope





Pictures



Reticle



Features


· 34mm Monotube Made of 6061 T6, Designed for LR, XLR and Precision Competition Shooting

· True 5x Zoom Factor, 12-60x Extremely High Power, Second Focal Plane Scope, Fully Multi Coated

· 11 Levels Red Illumination (1 NV Level), Side Focus Parallax Min Starts from 10 Yards to Infinite

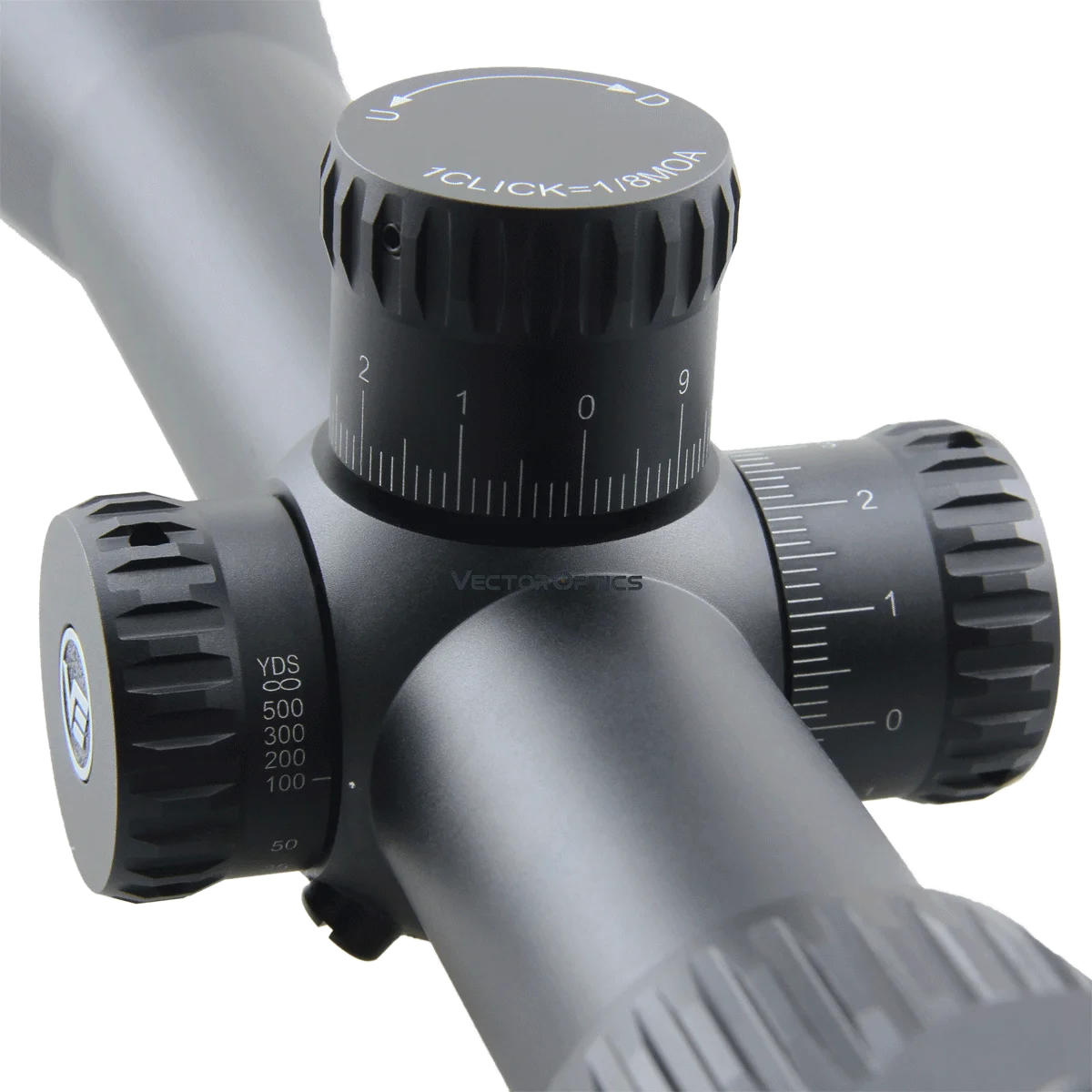

· 1/8 MOA Adjustment, Zero-Stop Elevation & Turret Lock Windage, 80 Clicks per Round, 40MOA Range

· Constant 3.8″ Long Eye Relief, Edge-to-Edge Image, Etched Glass Very Fine Reticle Center Dot Illuminated

· Take Lapua Magnum 338 Recoil and All Fields of Application for Hunting, Sporting & Competition



Overview


· Click Value: 1/8 MOA

· Elevation Range : 40 MOA

· Windage Range : 40 MOA

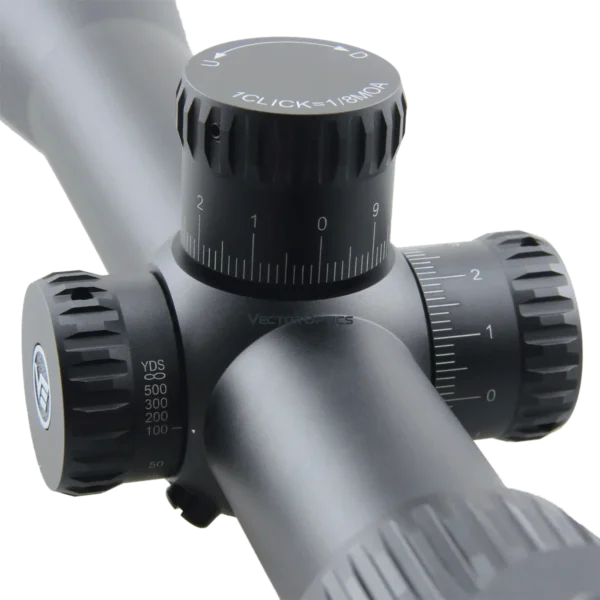

· Turret Type : Zero-Stop Elevation & Turret Lock Windage

· Illumination : Digital control 10 levels plus 1 NV

Two Reticle Options

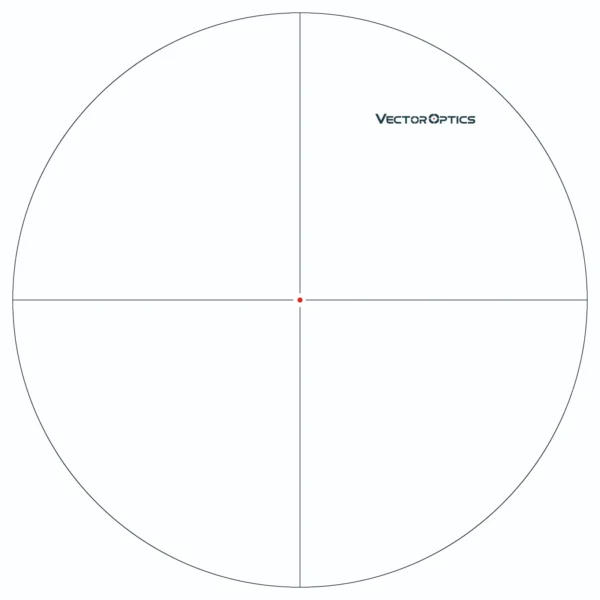

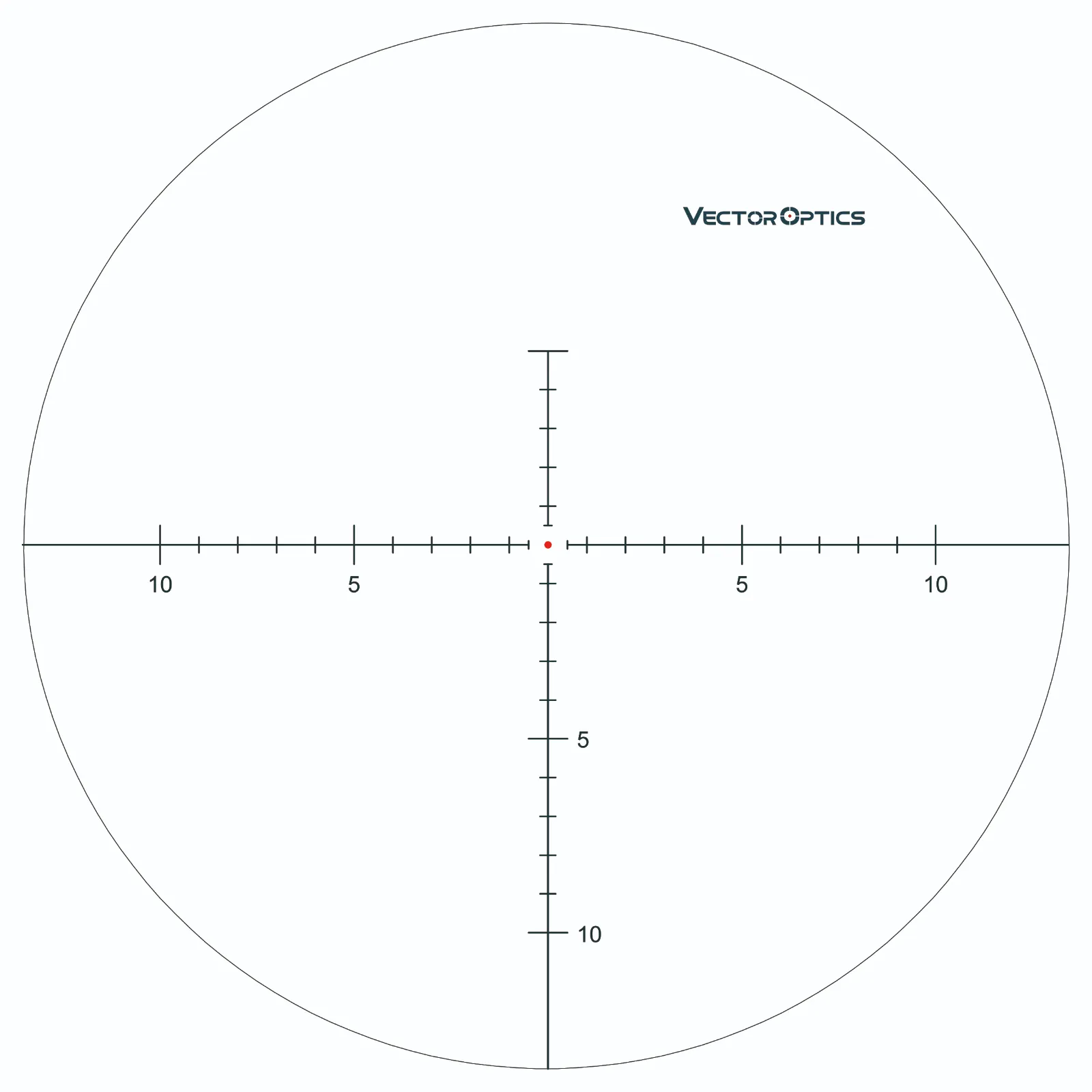

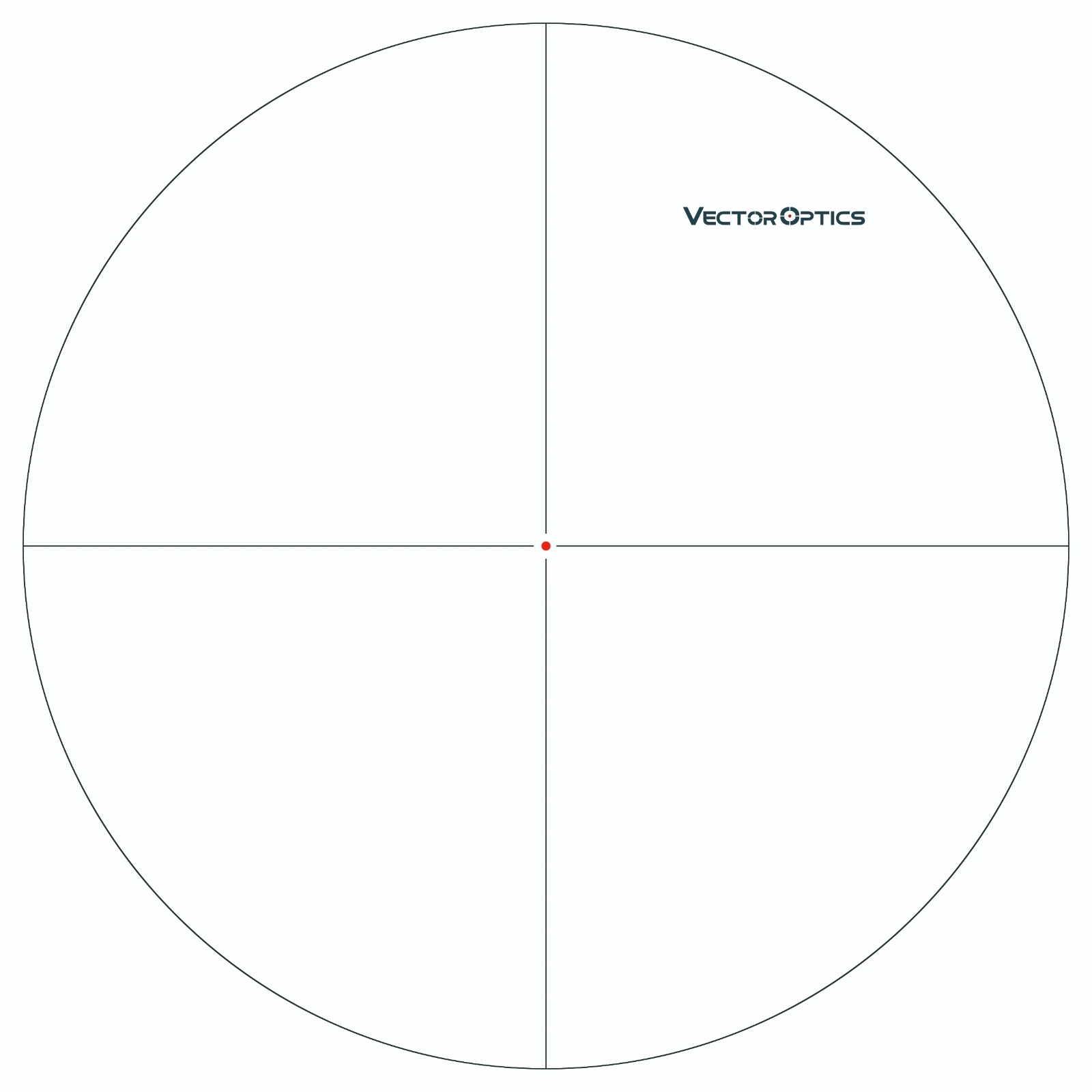

· Reticle: Etched Glass VETD-LR & VEMP-LR

· Field of View: 9.15-1.83 feet @100 yards


Specifications


Magnification

 12-60x

Objective Lens Dia

 60mm

Ocular Lens Dia.

 38mm / 1.5″

Ocular Lens Length

 55mm / 2.2″

Exit Pupil

 3.5-1.0mm

Optics Coating

 Fully-multi coat

Field of View

 9.15-1.83 feet @100 yards

Field of View

 1.75-0.35°

Eye Relief

 96-95mm 3.8-3.7″

Tube Dia

 34mm

Click Value

 1/8 MOA

Adjustment Range

 40MOA

Side Focus

 10 Yds to infinite

Reticle

 Etched Glass VETD-LR & VEMP-LR

Length

 425mm / 16.7″

Weight

 960g / 33.9oz

Finish

 Black matte

Illumination

 Digital control 10 levels plus 1 NV

Battery type

 CR2032

· Distance between objective lens part and middle turret: 85mm (3.3 inch)


· Length of middle turret part: 38mm (1.5 inch)


· Distance between middle turret part to power ring: 50mm (2.0 inch)


· Shock tested to 1000g, water resistant, fog proof


· Fully nitrogen purged to eliminate any fogging of the lenses internally


· 80 clicks per round, elevation zero stop, windage turret lock feature


· High quality 6061 T6 aircraft grade aluminum


· Focus mark: 10, 15, 25, 35, 50, 100, 200, 300, 500 and infinite


· Diopter compensation from fast-focus eyepiece (+2 to -2)


Packing


Including items:


1x 34mm picatinny high rings

1x Sunshade

1x Filp-up caps

1x Cleaning Cloth

1x Instruction

1x Retail package

5 Years Limited Warranty

Your Vector Optics product is warranted free of defects in materials and workmanship for a period of 5 years from time of purchase by the original purchaser. Batteries are not covered under warranty.

In the event of a defect under this warranty, we will, at our option, repair or replace the product. This warranty does not cover damages caused by misuse or improper handling. Also, this warranty is null and void if modification or maintenance is provided by someone other than Vector Optics. This warranty is non-transferable.

For products not directly purchased from us, customer should contact their local dealer for applicable warranty in.

Color

SCOL-37 DOT, SCOL-40 MFL

Ships From

CHINA, Poland, United States, spain, Russian Federation
