SPECIFICATIONS
Brand Name: Vector Optics
Type: RIFLE
Origin: Mainland China
Function: Lens
Model Number: SCFF-36
Magnification: 1-4x
Objective Lens: 24mm
Ocular Lens Dia.: 35mm
Ocular Lens Lenght: 59mm
Exit Pupil: 11.0-5.0mm
Optics Coating: Fully-multi coated
Field of View: 105.8-26.2 feet @ 100 Yds
Field Of View: 20.0-5.0°
Eye Relief: 105-100mm (4.13-3.93″)
Length: 255mm / 10.0″
Weight (with mount): 485g / 17.1oz
Tube Dia: 30mm
Click Value: 1/2MOA
Adjustment Range: 60MOA
Parallax Setting: 100 yards
Reticle: Etched Glass M-4RD
Finish: Black matte
Illumination: 6 levels red
Battery Type: CR2032
Length of middle turret part: 39mm (1.5 inch)
Feature
· True One Power Scope w/ Two Eyes Open at 1x Power, 30mm Monotube Made of 6061
· 20.0° F.O.V @ 1x Power, 4″ Long Eye Relief, Super Edge-to-Edge Crystal Clear Image

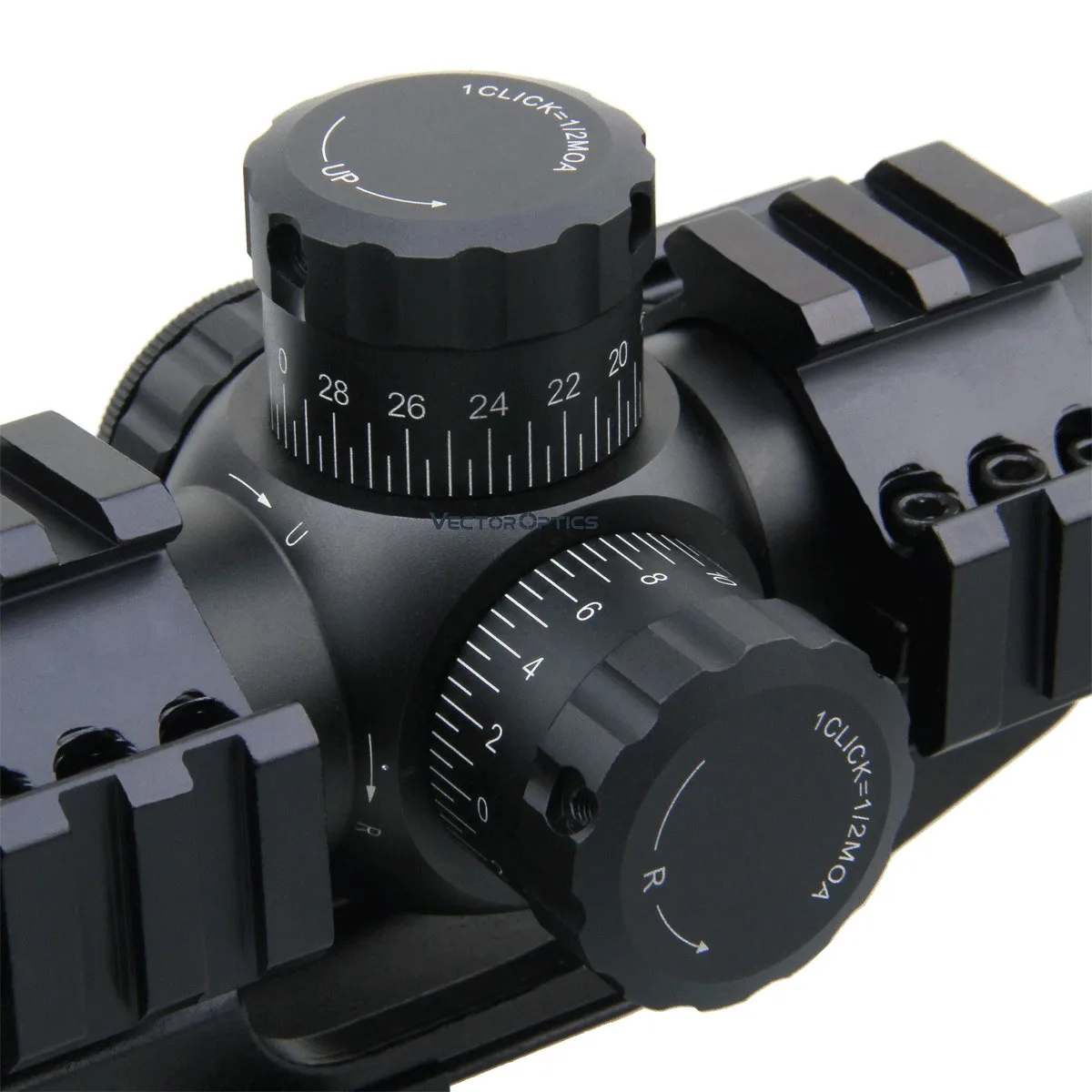

· First Focal Plane, 1/2 MOA Tactical Finger Adjustment with Turret Lock Feature

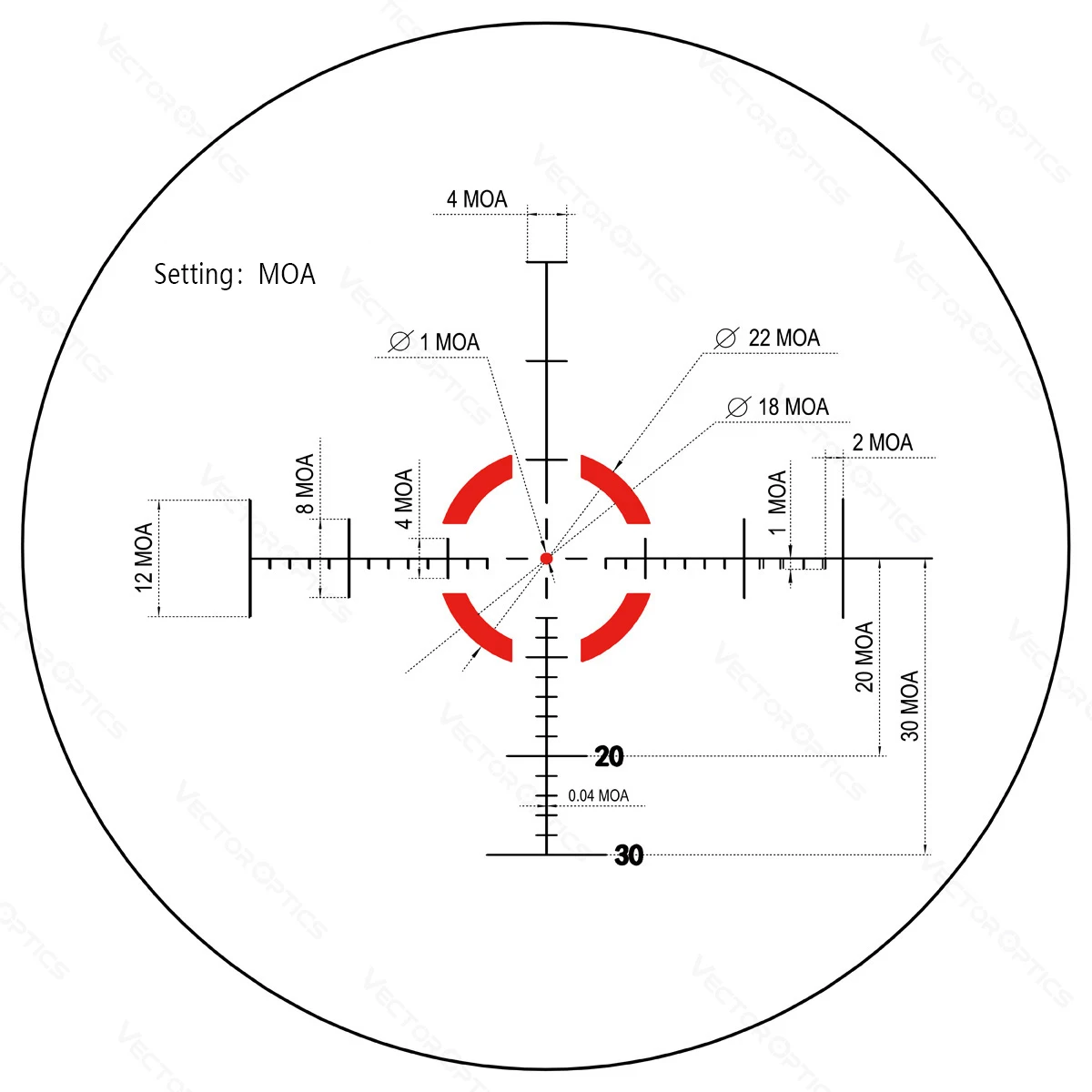

· Etched Glass M-4RD MOA Reticle Used @ 4x Power with 6 Levels Red Illumination on Side
· Come with 30mm One Piece Picatinny Mount, Flip-up Caps, Power Ring Lever Mount
Specifications
· Magnification: 1-4x
· Objective Lens: 24mm
· Ocular Lens Dia.: 35mm
· Ocular Lens Lenght: 59mm
· Exit Pupil: 11.0-5.0mm
· Optics Coating: Fully-multi coateds
· Field of View: 20.0-5.0°
· Eye Relief: 105-100mm (4.13-3.93″)
· Length: 255mm / 10.0″
· Weight (with mount): 485g / 17.1oz
· Tube Dia: 30mm
· Click Value: 1/2MOA
· Adjustment Range: 60MOA
· Parallax Setting: 100 yards
· Reticle: Etched Glass M-4RD
· Finish: Black matte
· Illumination: 6 levels red
· Battery Type: CR2032
· Length of middle turret part: 39mm (1.5 inch)
· Distance between middle turret parts to power ring: 46mm (1.8 inch)
· Distance between middle turret parts to objective lens: 78mm (3.1 inch)
· Adjustment lock feature: pull up to adjust, press down to lock
· Shock tested to 750g, water resistant
· Fully nitrogen purged to eliminate any fogging of the lenses internally
· High quality 6061 T6 aircraft grade aluminum
· Diopter compensation from fast-focus eyepiece (+2 to -2)

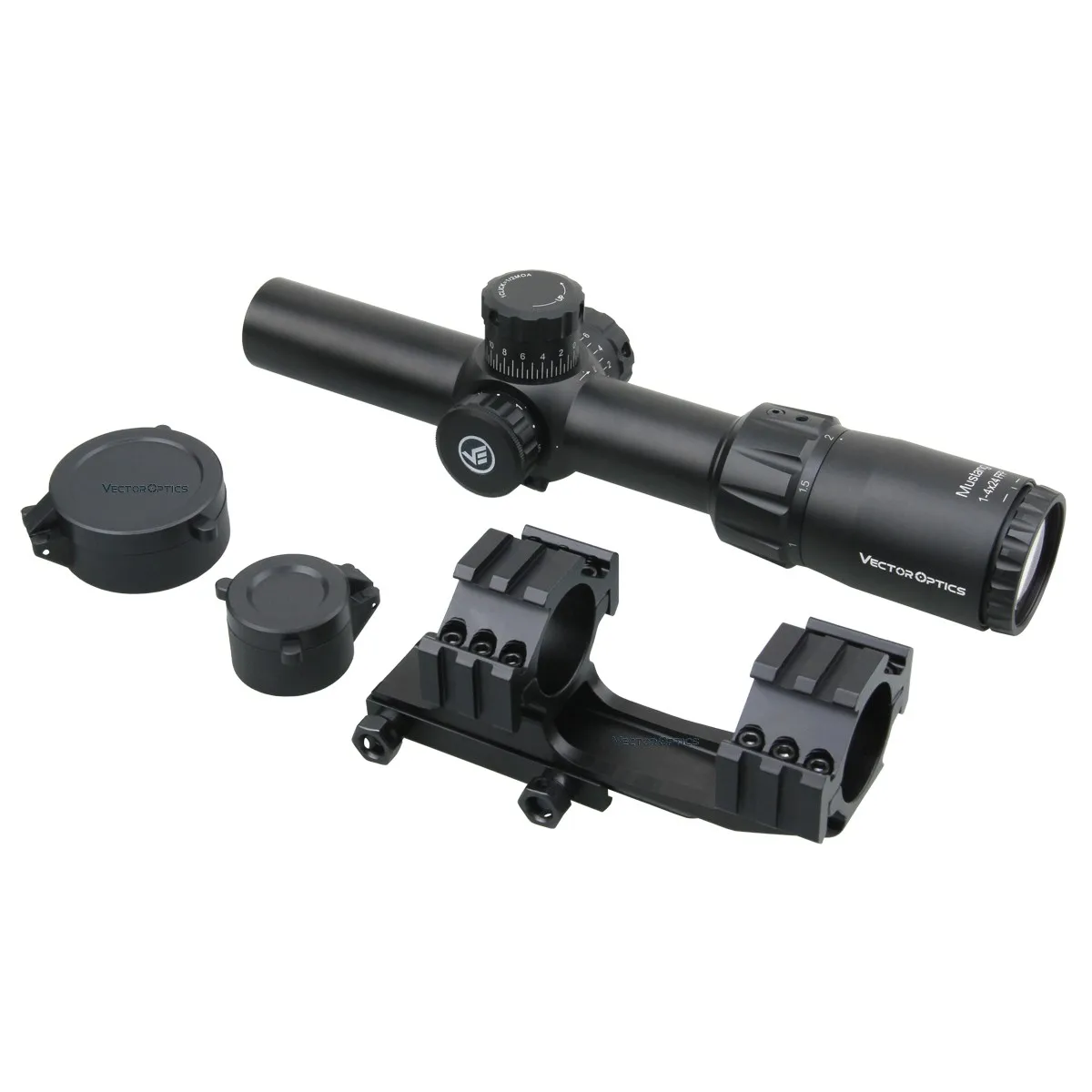

· Including items: 30mm one piece picatinny mount, flip-up caps, power ring lever mount and cleaning cloth etc.
