SPECIFICATIONS
Brand Name: svbony
Origin: Mainland China
Model Number: SVBONY SV406 25-75×100 Spotting Scope
Brand: SVBONY
Model: SV406
Objective lens: 100mm
Magnification: 25x-75x
Focusing system: Dual Speed Focusing
Focus lens: Porro Prism
Angular field of view: 1.7°-0.9°
Linear field of view: 90ft-48ft
Eye Relief: 20.0mm-18.0mm
Exit pupil: 4mm-1.33mm
Objective lens group: 3 groups of 3 pieces
Eyepiece group: 4 groups of 7 pieces
Prism type: K9
Prism coating: FMC Silver plate
Lens coating: FMC
Nitrogen filling: Yes
Minimum Focusing Distance: 10m
Zoom system: Linear
Mask structure: Rotating eye mask
Soft Case: Portable
Net weight: 2070g / 4.563lb / 73oz
Dimension: 470*117*186mm
Fogproof: Yes
waterproof: IPX7
Focal length of objective lens: 518.1mm

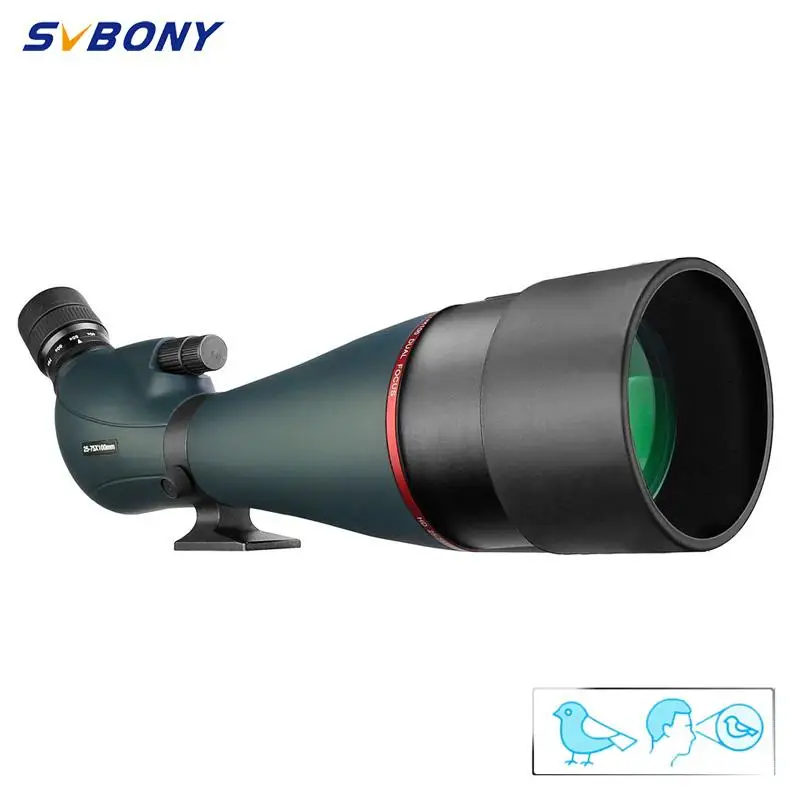

SVBONY SV406 25-75x100HDDual Speed Focusing Spotting Scope Monocular Waterpoof and Fogproof for Shooting Archery Hunting with Soft Carrying Case
We designed the spotting scopes with good optical quality and ease of use in mind. The spotting scope features with a 100mm-wide objective, fully multi-coated lenses and K9 prisms with silver coating. They bring great clarity and brightness within the reach of user. For long range viewing, a dual focus wheel system enables fast and fine-tuning focus adjustment allows you to lock onto your target and zoom in for more detail clearly. The light-weight body is fog proof, waterproof, and filled with nitrogen gas to prevent internal fogging and promote better thermal stability.
Features:
1.Dual speed focusing spotting scope for smooth and accurate focusing.
2.Fully multi-coated 100mm objective lens provides a field of view at 90-48ft/1000yard and 7pcs/4groups lens increase light transmission, deliver bright, clear, crisp images even in low-light conditions.
3.Variable 25x to 75x zoom magnification allows you to view a wide field of view at a lower power and zoom in on details at a higher power.
4.Nitrogen filled waterproof and fog-proof design enables the scope to withstand the toughest environments.
5.The adjustable Twist-up Eyecup Type for comfortable viewing with or without glasses.
6.Perfect for target shooting, archery, hunting.
Specifications:
1.Brand: SVBONY
2.Model: SV406
3.Objective lens: 100mm
4.Magnification: 25x-75x
5.Focusing system: Dual Speed Focusing
6.Focus lens: Porro Prism
7.Angular field of view: 1.7°-0.9°
8.Linear field of view: 90ft-48ft
9.Eye Relief: 20.0mm-18.0mm
10.Exit pupil: 4mm-1.33mm
11.Objective lens group: 3 groups of 3 pieces
12.Eyepiece group: 4 groups of 7 pieces
13.Prism type: K9
14.Prism coating: FMC Silver plate
15.Lens coating: FMC
16.Nitrogen filling: Yes
17.Minimum Focusing Distance: 10m
18.Zoom system:Linear
19.Mask structure:Rotating eye mask
20.Soft Case:Portable
21.Net weight: 2070g / 4.563lb / 73oz
22.Dimension: 470*117*186mm
K9 has low inclusions and bubbles, used for lenses and prisms for lasers and optics. It has good physical properties and can be polished like leaded glass. It also weighs approximately 15% less than full (24%) leaded glass (crystal).
Fully multi-coated 100mm objective lens increases the light transmission, delivers bright, clears and crisps images even in low-light conditions.
Variable 25x to 75x zoom magnification allows you to view a wide field of view at a lower power and zoom in details at a higher power.
For a long range viewing, a dual focus wheel system enables fast and fine-tuningand the focus adjustment allows you to lock your target and zoomfor more cleardetails.
The light-weight body is fog proofing, waterproofing, and filled with nitrogen gas to prevent internal fogging, promote better thermal stabilityand enable the scope to withstand the toughest environments.
The twist-up eyecupslet the user dial exactly the need of eyecup extension. Twist-ups also maintain their positions without collapsing at crucial moments.
180°adjustable angle meets the observation requirements in various scenes .
Reduce glareand shields the objective lens from scratch, damage and raindrop.
Package Includes:

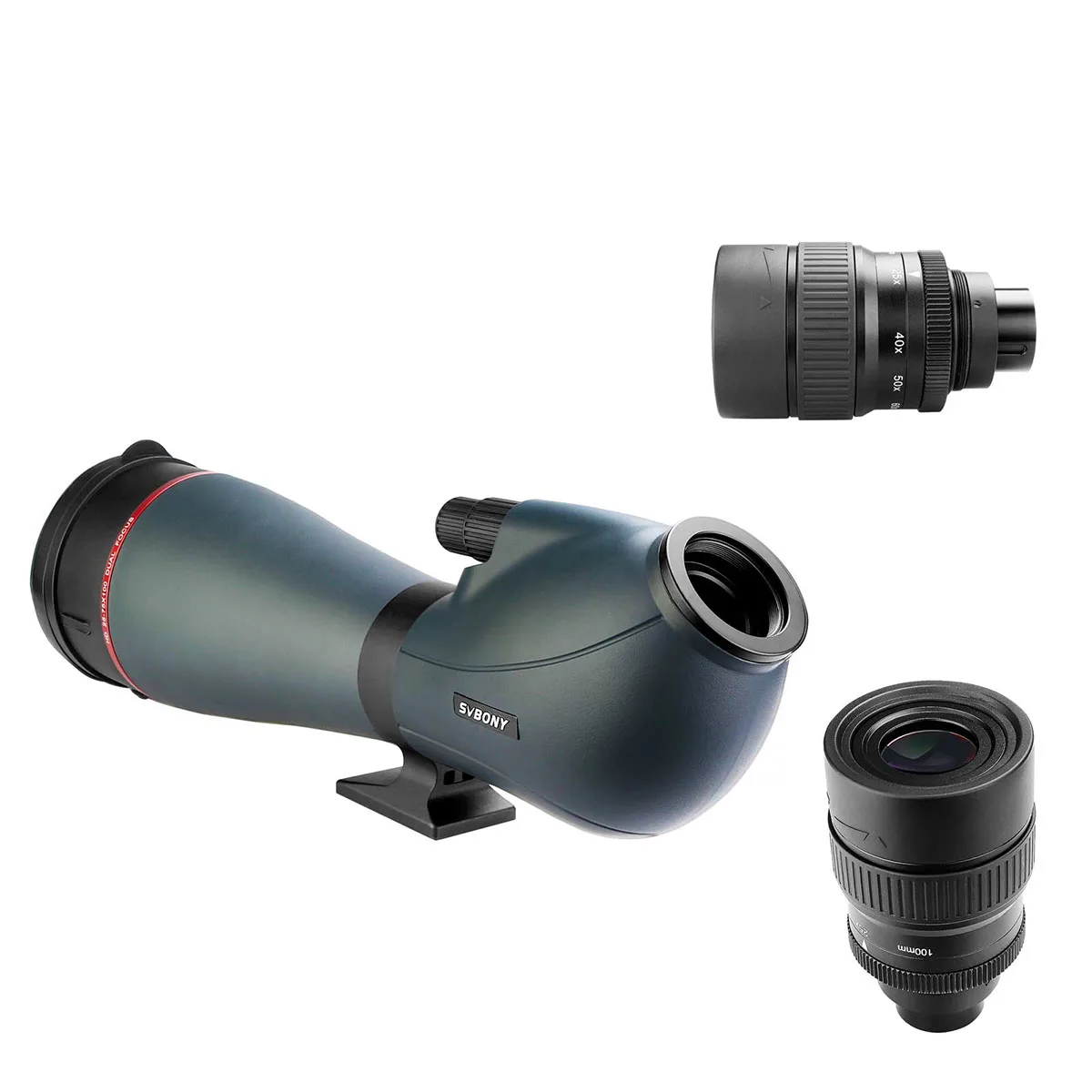

1x SV406 25-75*100 Dual Focus Spotting Scope
1x Carrying Case package
1x 2PCS Lens Covers (Eyepiece and Objective lens)
1x Lens Cleaning Cloth
1x User Manual
